Product Description

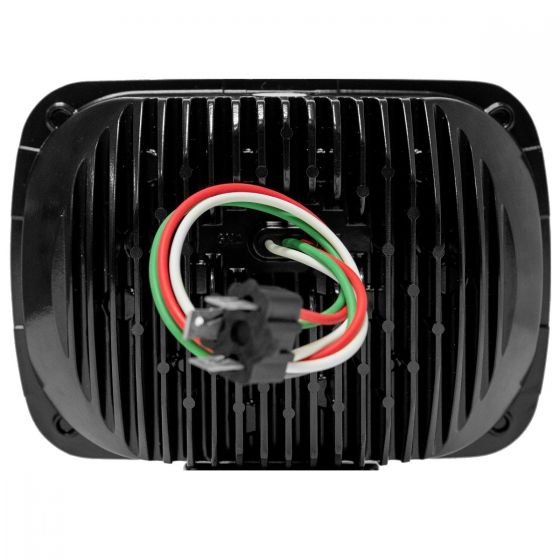

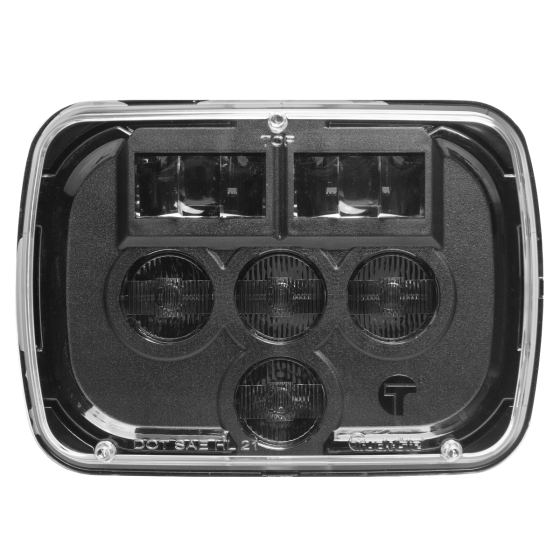

Truck-Lite 37 Series, LED, 5"x7", Rectangular, Clear Headlight
More Details
The TL 37 Series Direct LED Headlights, in a durable rectangular 5"x7" design with 6 diodes for both high and low beam patterns, offer reliable and versatile lighting for improved visibility in various conditions.
Product Information
- Series: 37 Series
- Category: Headlamp
- Aiming Type: Mechanical Aim
- Beam Pattern: High|Low
- Beam Type: LOW / HIGH
- Compliance Family: FMVSS 108|CMVSS 108|DOT|SAE
- Common Size: 5"x7"
- Country of Origin: US
- Current Major: 2.00A-3.70A @ 12.8V 1.05A-1.90A @ 25.8V
- Current Minor: 1.38A-1.98A @ 12.8V 0.70A-1.00A @ 25.8V
- Heated Lens (Yes/No): No
- Housing Material: Die-Cast Aluminum
- Lens Shape: Rectangular
- Lighting Technology: LED
- Lamp Connection: Hardwired
- Lamp Connection (Simplified): Hardwired
- Lens Color: Clear
- Lens Height_INH: 1.15"
- Lens Material: Polycarbonate
- Lens Width_INH: 5.591
- Number of Diodes/Bulbs: 6
- Number of Wires: 3
- Packaging Type: Standard
- Plug Side One: Hardwired
- Plug Side Two: H4 - 3 blade connector
- Sealed/Bulb Replaceable: Sealed
- Total Depth_MMT: 78.74
- Total Depth: 3.1"
- Total Height_MMT: 142.01
- Total Height: 5.591"
- Total Width: 7.819"
- Weight: 2.3 lb
- Wire Gauge: 16
